IPX34B Box-type Rain test chamber
Name:IPX34B Box-type Rain test chamber
Type:BND-IPX34B
Manufacturer:We are specialized in producing all kinds of IPX1 to IPX8 waterproof test euipment, more detail please contact us.
Product Description:

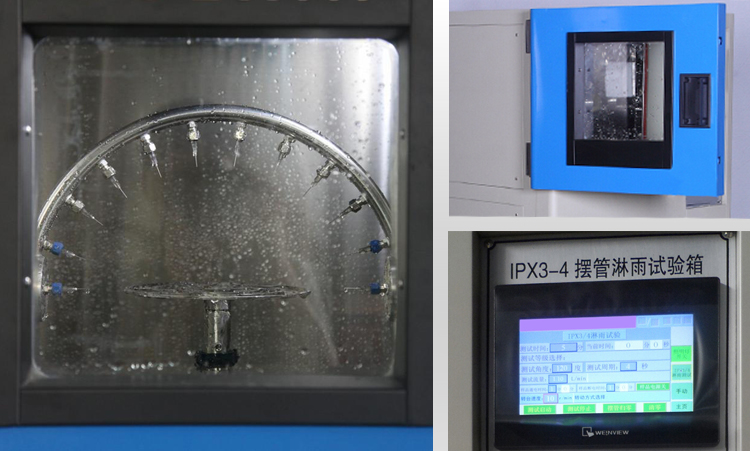

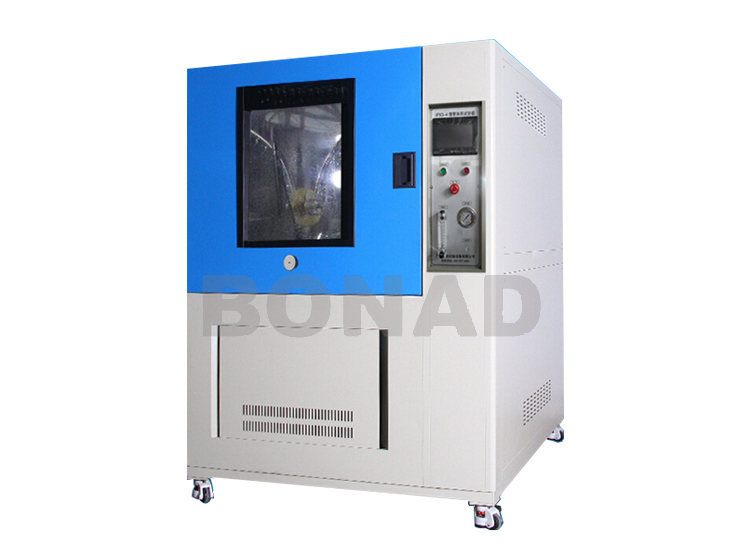

IPX34B rain Box test chamber

Technology parameter

No.

model

BND-IPXB-R200

BND-IPX34B-R400

BND-IPX34B-R600

1

Swing pipe size (mm)

R200

R400

R600

2

External dimensions (mm)

L500*D500*H500mm

L900*D900*H900mm

L1300*D1300*H1300mm

3

Outer size(mm)

L1000*D680*H1440mm

L1400*D1080*H1900mm

L1740*D1480*H1950mm

4

Flow (L / mm))

0-1L/Min

0-2L/Min

0-3L/Min

5

Turntable Size (mm)

200

400(can add 200)

600(can add 400,200)

6

Turntable height adjustable range

150-250 mm

350-600mm

550-1000mm

7

Spray aperture diameter (mm)

0.4

8

swing pipe inner diameter

(mm)

15

9

Swing angle

120°(IPX3), 350°(IPX4), or customize

10

Swing speed

120°(to and fro) 4S、360°(to and fro)

12S(accurate control)or customize

11

Swing pipe material

SUS304 stainless steel

12

Turntable speed

1-5r/min(accurate control)

13

protective device

Leakage, water shortage, short circuit

14

Power supply (V)

220V

15

PowerKW

1

16

Standards

IEC60529:1989+A1:1999、(IPX3、IPX4)
